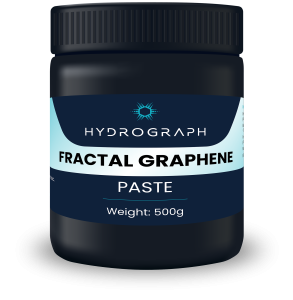

Fractal Graphene Paste™
The only best-in-class dispersion made from best-in-class graphene
The most critical step in every graphene application is dispersion. HydroGraph's Fractal Graphene Paste eliminates it entirely; delivering pre-dispersed, stabilized Fractal Graphene™ at 20% concentration, ready to integrate into your water-based system with nothing more than standard mixing equipment.
INTEGRATION OF GRAPHENE
Pre-dispersed, stabilized, concentrate of high-purity graphene – ready to use.
HydroGraph’s Fractal Graphene Paste is a highly concentrated aqueous dispersion of Fractal Graphene™, engineered to eliminate the most failure-prone step in every graphene application: achieving stable, uniform dispersion.
Graphene is naturally hydrophobic. When added to water-based systems as a powder, it agglomerates and distributes unevenly, creating localized points of failure and inconsistent performance. Fractal Graphene Paste removes that problem entirely, delivering a graphene concentrate that is fully pre-dispersed, stable long-term, containing high-purity and identical consistency graphene verified batch-to-batch from HydroGraph’s patented Hyperion detonation process.
- Aqueous carrier — compatible with all water-based formulations
- High concentration for economical dosing - 20% graphene
- Fully dispersed to ultrafine primary particle with narrow size distribution — D50 at 35nm
- Exceptional dispersion stability — shelf-life >2 years
- Flowable and pourable — easy to handle and dispense
- Pristine few-layer graphene — 99.8% carbon, no PAHs.
- Identical batch to batch consistency — production verified
Advanced Carbons Council Verified Producer®
The only certified graphene manufacturer in the Americas — third-party inspected facilities, production methods, and QC.
THE CORE PROBLEM WE SOLVE
Graphene that's ready to perform -
without the dispersion challenges
CONVENTIONAL APPROACH
Aqueous Dispersion is Harder Than It Looks
- Graphene powder is hydrophobic — it actively resists dispersion in water-based systems.
- Specialist equipment required — powder handling and preparing dispersions requires engineering controls and high energy mixing, adding cost and process complexity.
- Agglomeration is hard to avoid — once dispersed, graphene particles will still tend to stick back together or settle over time, making stability and shelf-life a challenge.
- Performance is limited by quality — poor dispersion and inconsistent graphene quality are the common factors, leading to variable results.
- Lab-to-production gap — most commercially available graphene dispersions cannot achieve high concentration and long-term stability needed for practical end-use at scale.
FRACTAL GRAPHENE PASTE APPROACH
When the Obstacles Are Removed
- Pre-dispersed and stabilized — Fractal Graphene is fully dispersed and stable before, during and after your process.
- Standard mixing equipment only — dilute paste, add to mix, process as usual. No specialist equipment, no new capital investment.
- No re-agglomeration in use — graphene stays separated and stable before and after integration.
- High quality starting materials — contains 99.8% purity Fractal Graphene with uniform particle size and verified batch-to-batch consistency.
- Scale with confidence — Fractal Graphene Paste provides high concentration and long-term stability for practical use at volume.
TARGET APPLICATIONS
Built for the industries that
demand more from materials.
Optimized for water-based systems, delivering measurable performance gains at ultra-low graphene loadings, as little as 0.01% by weight, and used across a wide range of markets.
Concrete & Construction
Integrates directly into mortars, cement slurries, pre-cast concrete, and ready-mix systems, using existing batching plant infrastructure — no process changes. Improves flexural and compressive strength, accelerates cure, and reduces embodied carbon per project..
Data Centers & Thermal Management
Enhances coolant, thermal fluids, and direct-to-chip (D2C) liquid cooling systems for next-generation AI and data center infrastructure. Graphene's thermal conductivity improves heat dissipation and thermal efficiency improving system uptime.
15% increase in thermal conductivity in water/propylene glycol at 50 degrees C →
Protective & Functional Coatings
Adds to water-borne coating formulations with standard mixing — no reformulation required. Creates a physically impermeable barrier dramatically extending coated asset service life and reducing maintenance costs.
18% increase in adhesion strength in acrylic coatings, reduction in scribe creepage and blistering in salt spray corrosion testing →
Elastomers & Rubber Compounds
Compatible with water-based elastomer and rubber dispersion systems. Improves mechanical strength and durability allowing for downgauging film thickness or extending service life of products.
17% improvement in tensile strength, 10% increase in toughness in NBR →
WHY HYDROGRAPH'S FRACTAL GRAPHENE PASTE
The advantages aren't incremental.
They're structural.
20%
Highest graphene concentration available
At 20% graphene content by weight this reduces shipping cost, storage footprint, and makes precise dosing more economical at any production scale. Even the highest concentrations, Fractal Graphene Paste remains flowable for straightforward dosing and dispensing.
>2 years
Dispersion stability shelf life that holds under process
Stability is maintained before and after integration for reliable processing. The Zeta potential of -45 mV ensures that our Fractal Graphene remains separated and does not settle over time, ensuring confidence in its performance, even after long-term storage.
D50 at 35nm
Fully dispersed down to primary particle size
Fractal Graphene Aggregate powder is incredibly consistent. In our Fractal Graphene Paste, the aggregate structure is completely broken apart into its primary form with median size of 35 nm, ensuring a homogeneous product for reliable performance.
99.8%
Purity other methods cannot achieve
Turbostratic few-layer graphene with pristine 100% sp² structure and exceptional purity of 99.8% carbon. No metallic impurities. No PAHs. The highest quality graphene commercially available — delivered stable, in water.
HOW IT COMPARES
Not all graphene
additives are equal.
The combination of starting material and dispersion determine what you get out of a graphene additive. Most compromise on at least one – HydroGraph’s Fractal Graphene Paste does not.
RELATED PRODUCTS
The HydroGraph
product family.
POWDER FORM
Fractal Graphene™
HydroGraph’s flagship graphene powder — 99.8% pure turbostratic aggregated nanoplatelets with the unique fractal structure that delivers 10–100× performance at ultra-low loading. Ideal for solvent-based systems, melt compounding, and custom dispersion workflows.
View Product →
FUNCTIONALIZED FORM
Reactive Graphene™
A functionalized variant of Fractal Graphene™ with carboxylic acid surface groups — engineered for applications requiring additional chemistry. Pristine graphene core with surface-only modification for targeted performance in composites, dispersions, and catalysis.
View Product →
Request a Sample
We’re releasing limited samples to qualified researchers, formulators, and materials engineers. Apply now to see how Fractal Graphene Paste can ingnite material change in your application.
